The ELIQUO HYDROK CWF technology offers an efficient and cost effective alternative to the normal storm tank cleaning procedures.

The CWF will only operate when it needs to, immediately after a storm event and can be utilised at the end of any length tank.

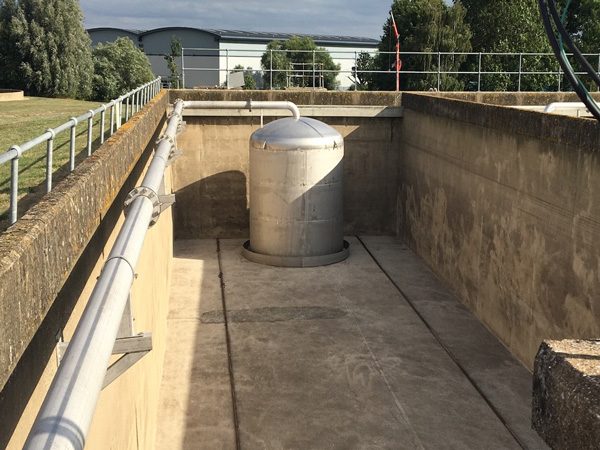

The CWF Storm Flush is a simple method for sediment removal. Storm water is held in reserve in the storage reservoir, filled as the tank fills during a storm - no separate water supply is required. At the end of a storm event and after the system has emptied, the retained flushing water is released via the vacuum break within the flushing vessel. This creates a RFP (Roughing, Fine and Polishing) staged flushing regime which mixes and carries the sediment from the base of the tank to the receiving sump. A CWF system needs very little maintenance because of the few moving parts - the only moving part on the CWF is the non-return valve, which is an easily interchangeable off- the-shelf item, quick and easy to replace.

-- Advertisement --

View the video of it in action www.eliquohydrok.co.uk/en/product-videos.html.

Benefits

• No power requirement, or controls

• Suitable for new tanks and retrofit to existing tanks

• Flushes even after partial fillings

• Fully self-priming and flushing operation for rectangular, square and circular tanks

• Suitable for both open and below ground installations

• Intrinsically safe - only one moving part

• Synchronised flushing of multi-unit installations within larger tanks

• Suitable for unscreened flows

• Offsite manufacture and minimal on-site installation

For further information contact: [email protected] or visit the website www.eliquohydrok.co.uk.
