ERHS Ltd

Electric Radiant Heating Systems

---

ERHS are the UK’s leading supplier of quality electric heating systems and electric floor heating. Scroll down to find out more or to see their extensive product range.

ESWA is the UK’s longest established electric floor heating system, having been in use in the UK since 1959. ERHS is the distributor for ESWA heating systems in the UK. Over 60 years of their electric heating systems expertise has given us an unmatched level of knowledge. We pride ourselves on our extensive range of heating products and detailed customer service.

ESWA systems are in use in thousands of installations across the UK in many different types of buildings. We stock a large range of products, all manufactured to the highest standards, meaning that we are able to offer an effective heating solution for most situations. Our expert design and installation teams follow a set process to determine which type of electric heating system is best for your requirements:

• Our own in-house design team calculate room by room heat losses.
• We assess the heat output required.
• An individual heating system tailored to suit the specific needs of the project is determined.
• On acceptance of a quote we produce drawings on CAD showing element layouts and recommended thermostat positions.

UNDERFLOOR HEATING SYSTEMS
We specialise in designing two different underfloor heating systems: storage and direct acting. If you are unsure which is the most suitable for your requirements, please get in touch and we will be happy to offer advice.

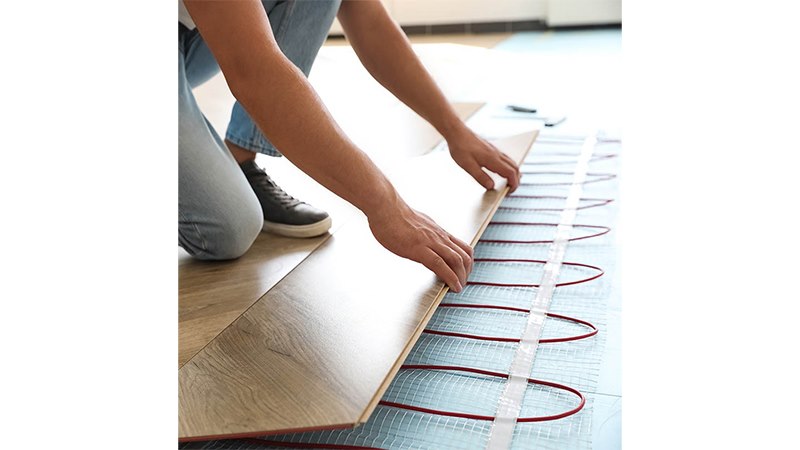

Storage Underfloor Heating
Storage underfloor heating makes use of the cheap rate electricity available to everyone on the Economy 7, or other time of day tariffs, to provide a comfortable background temperature at all times. In the winter periods it is possible to use the cheap rate electricity to provide a large percentage of the heat required. Storage underfloor heating normally uses a higher wattage cable in a 60-80mm screed, laid directly on to a concrete slab to give the maximum thermal mass around the cable, allowing as much heat to be stored in the slab as possible.

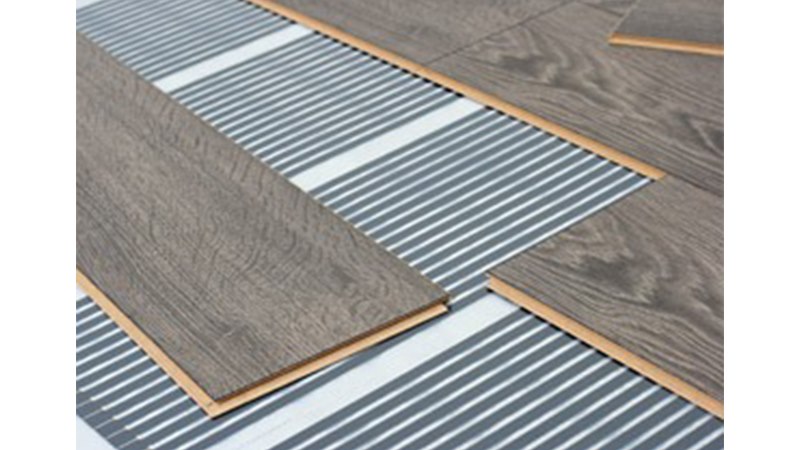

Direct Acting Underfloor Heating
Direct acting underfloor heating is well suited to modern low energy dwellings, particularly apartments. This type of heating is efficient, space saving and controllable. It normally involves the use of lower wattage cables in a thinner screed with insulation in close proximity to the underside of the cable, ensuring a smaller thermal mass around the cables, which provides a quicker reaction time and enables it to be used as the sole means of heating.

CEILING HEATING
ERHS supplies and installs modern ESWA electric ceiling heating systems that work by using the ceiling as a low temperature, large surface area radiator. Insulation is installed above the elements to prevent heat loss upwards. The system gently warm the surfaces of the room, which then warm the air within the room by conduction, rather than over heating the air directly like old fashioned, less efficient heating systems.

HEATING CONTROLS
As the UK’s original supplier of electric heating systems, we pride ourselves in the wide range of heating controls we stock.

Browse our range of thermostats, power regulators and clocks for an overview of what each can offer. If you have any questions about which heating control is best for you, please get in touch and we will be happy to offer advice.

Further technical information about each of the heating controls you see below is available in the Downloads section.

---
