About FuturEnergy Ltd

FuturEnergy is a leading British wind turbine manufacturer and engineering company specialising in the design, production and distribution of micro wind turbines for the generation of renewable energy.

We have sold more than 6000 domestic wind turbines worldwide, via a network of distributors, and are highly regarded in the renewable energy sector for our innovative and technologically advanced designs.

Our aim is to harness energy from the wind efficiently, quietly and cost effectively. We undertake extensive research and development to produce high performance, micro wind turbines for the global marketplace, whilst maintaining rigorous control over quality and after sales service.

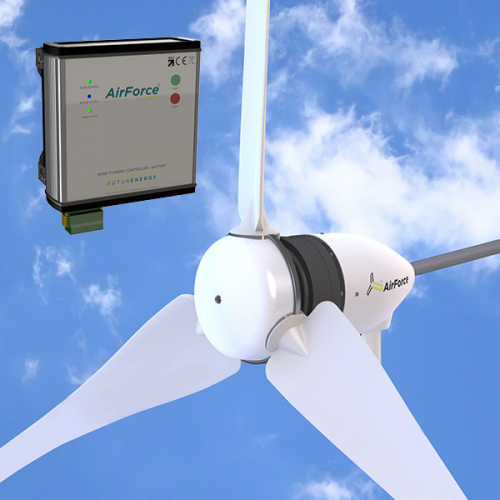

AirForce 1

1kW Wind Turbine
The new AirForce 1 model incorporates the FuturEnergy in-house designed and manufactured permanent magnet generator for efficient and durable production. The wind turbines have a 3phase (AC) output for rectification to DC.

Weighing in at only 19 kilos our turbines are tower-top ready, and will fit on to a standard 50mm steel tube pole. We do not recommend ‘building-mounted’ installations other than on steel-framed buildings.

Your turbine system will be supplied in 3 shipping cartons, weighing a total of 26kgs, and you will be required to attach the tailfin and blades to the main turbine housing.

All AirForce 1 Wind Turbines are now supplied with AirForce Control, a brand-new product designed and manufactured by FuturEnergy. AirForce Control provides unparalleled performance monitoring and automatic system protection for your 3-Phase AC 1kW turbine installation. Included with the AirForce Control is a Davis Anemometer, which provides the system with both wind speed and wind direction data.

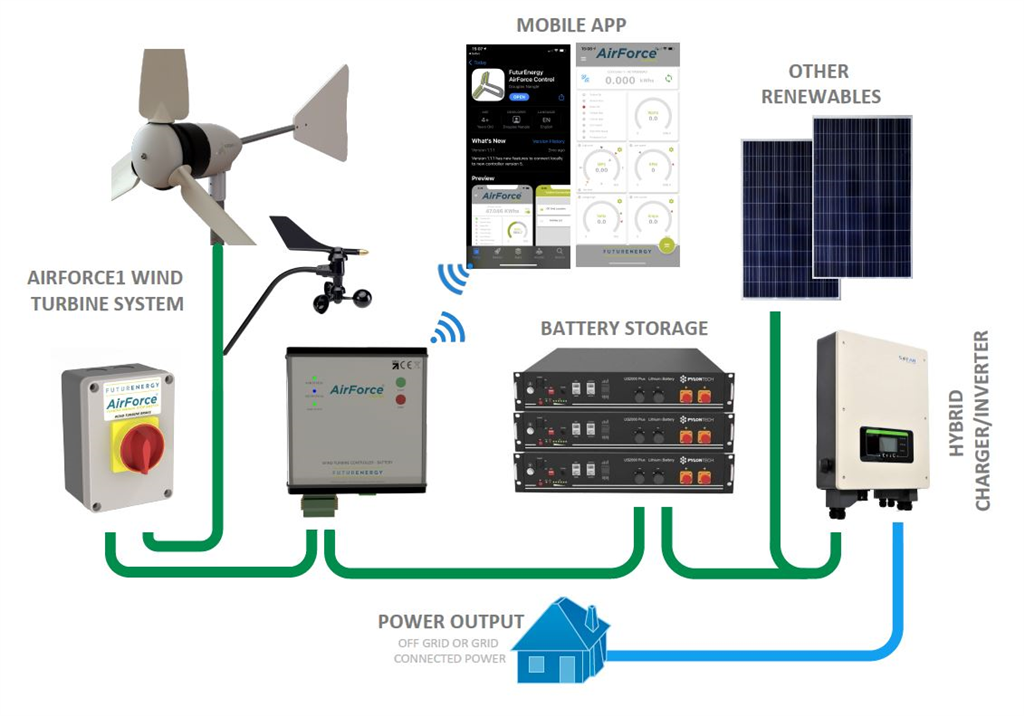

The AirForce Control unit is installed within a covered area close to and in series with the manual stop-switch and directly to the batteries or other loads. When charge parameters are met, or other controlled parameters exceeded, the turbine is automatically stopped and restarted when conditions return within operational limits or further battery charging is required.

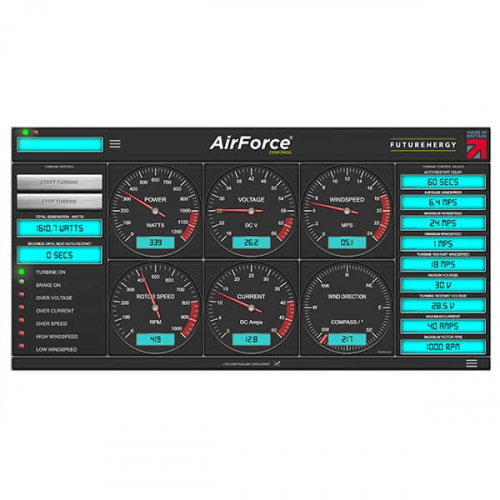

AirForce Control offers access to a Web-based portal providing remote control & configuration, along with trending of historical performance data for your turbine.

AirForce Control features:

* Provides configurable automatic control of the turbine
* Prevents damage due to turbine overspeed
* Improves system safety, reliability and longevity
* Compatible with 3 phase AC turbine installations and 24V and 48V battery charging installations
* Ability to monitor performance of the wind turbine: Power (W), Energy (Whrs), Wind speed instant (m/s) plus time averaged value, Wind direction (cardinal and ordinal), Battery voltage (Volts), Current (Amps), Turbine speed (rpm)
* Remote monitor capability with WiFi, bluetouth, and internet connection
* Configurable automatic stop/start functionality, parameterised on: Maximum battery voltage (turbine stop) with turbine restart voltage, Maximum charge current (turbine stop), Wind speed maximum (turbine stop) and restart value, Turbine restart delay time (seconds)
* Augments manual stop switch
* Maintains battery systems at optimum levels to prolong life
* Negates the need for dump loads

All instructions are supplied to guide you through the simple assembly.

Key Supply And Design Features:
  • FUTURENERGY high quality Permanent Magnet Generator
  • AirForce Control
  • 12 months’ warranty (extended warranty available)
  • Manual stop-switch supplied as standard
  • Suitable for wind/solar hybrid installations
  • Full installation kits available
  • Tough glass reinforced nylon turbine blades
  • All bearings sealed for life
  • 20 year installed design life
  • 60 Amp rated slip-ring to prevent cable twist
  • Rugged, simple and robust design
  • Corrosion resistant materials employed throughout
  • Restriction of Hazardous Substances (ROHS) compliant

1kW Turbine Tower Kit

Our tower kit is designed to be strong and easy to assembly. With the use of special ground anchors, no concrete or foundations are required and the tower can be relocated if required. The tower is raised and lowered using a Gin-Pole of standard scaffolding tube dimensions.

The kit comprises of all the components (excluding standard galvanized scaffolding tube*)required to raise your 1 KW FuturEnergy wind turbine (not supplied with the tower kit) to a maximum height of 8 meters. The kit includes ground anchors that have been specified to meet the required loading capacity calculated from EN-61400 to withstand 50-year maximum wind speeds when installed in most ground conditions.

The kit also includes tube and Gin-Pole couplings, galvanized wire rope assemblies with tensioners, brackets and full instructions for assembly.

*Galvanized scaffolding tube (48.5mm O/D x 5mm Wall) is available from builders merchants. 2 X 3m and 1 X 2m lengths are required for the maximum 8m height.
