About Custom Audio Designs Ltd

Introduction
Custom Audio Designs offers acoustic testing, design-stage and remedial consultancy along with an acoustic material information and procurement service for commercial, residential and industrial projects.

The company is quality-certified for Acoustic Consultancy and Supply Services by a UKAS-accredited third party.

Applications
Materials for walls, floors, ceilings, basements, metal deck roofs, HVAC, vibration isolation, lagging insulation and fire protection in commercial, residential and industrial buildings whether new build, conversion or refurbishment projects.

Authority
Products and systems comply with Approved Document E and BB93. All fire-resisting products are certified to BS 476: Parts 6 and 7, Class 0, 1 or Euroclass B s2, d0. Technical support is from Institute of Acoustics qualified personnel.

Insulation, absorption and miscellaneous products
Tecsound 100 and VL65 acoustic membranes: 5.2mm and 4mm thick and 10kg/sq.m and 6kg/sq.m respectively. RW 28 - 32 dB. Euroclass B, s2, d0 (Class 0) fire rated. Recycled and recyclable.
Tecsound 2FT80 quilt: 24 mm thick, 8 kg/m², RW 28 dB.
High density, cement impregnated acoustic board - 18 mm thick, Class 0 fire-rated, RW 35 dB.
Ecomat RC3 and 5: Recycled Acoustic recycled rubber/cork composite underlay for impact reduction. 3mm (∆ LW 18 dB)and 5 mm thick (∆ LW 20 dB).
CAD20 wall panels: 20 mm thick. To reduce noise through party walls.

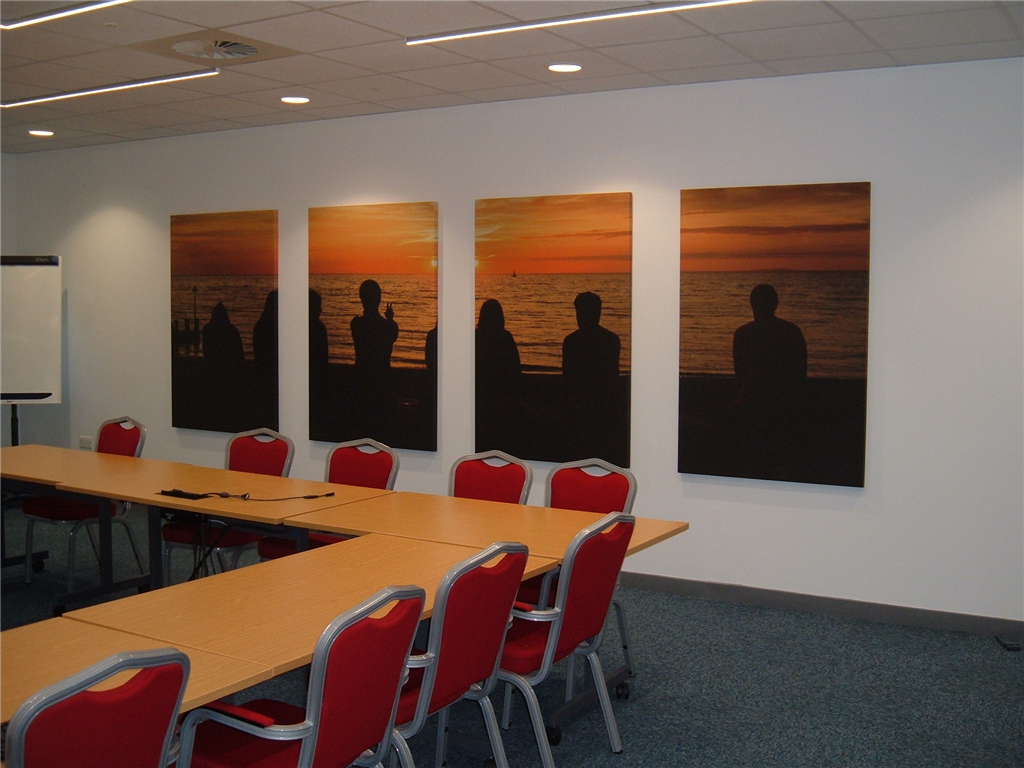

ProSonic printed acoustic panels: various shapes and sizes to reduce excessive reverberation. Customised imagery available.
Acoustic doorsets: Steel, up to 54 dB.
Acoustic roller shutter doors: Stainless steel/RAL paint finish. Height/width up to 5,000mm. UNE EN 12341-1:2004. For warehouses, hangars, shipyards, TV production sets etc.
Acoustic totems: For high levels of sound absorption in heavily glazed areas.
ProSonic Acoustic cubes and tubes: Ceiling suspended. Available in 23 colours.
Acoustic diffuser panels: Sound scattering and reverberation control in critical listening rooms and studios.

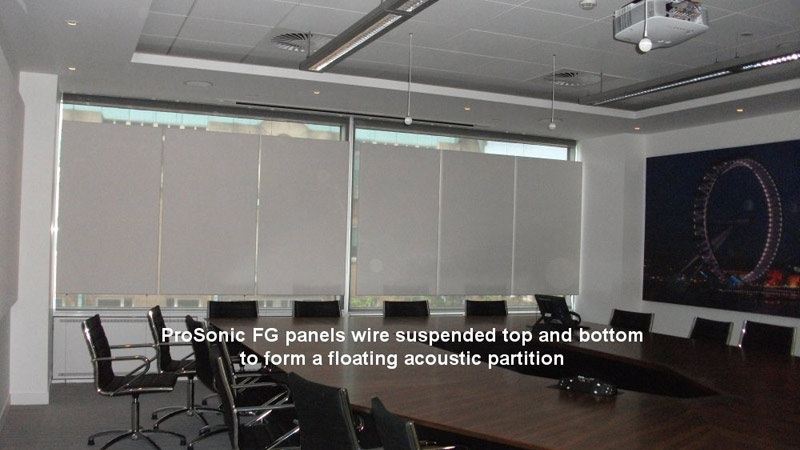

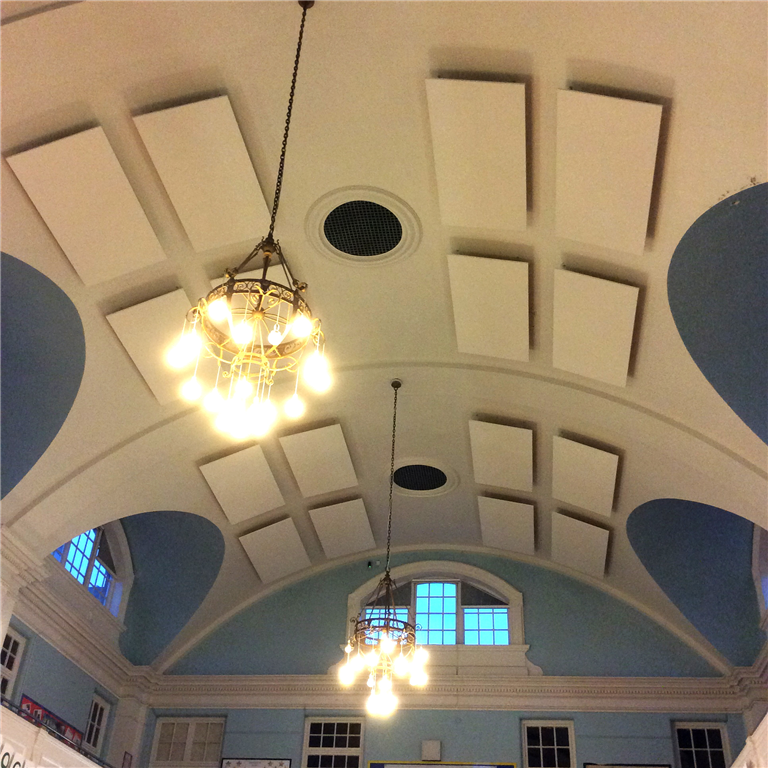

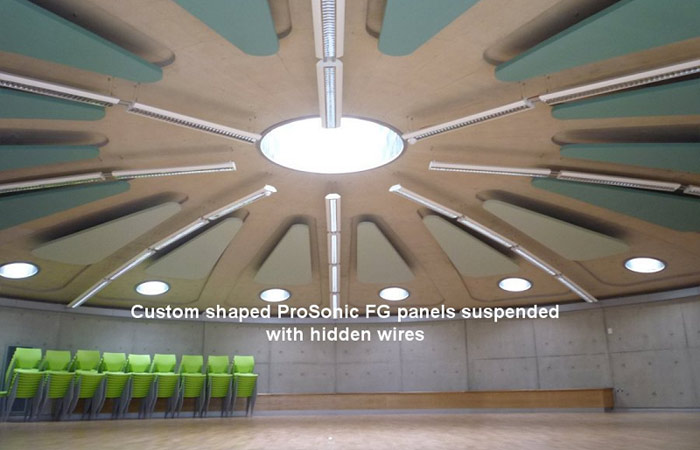

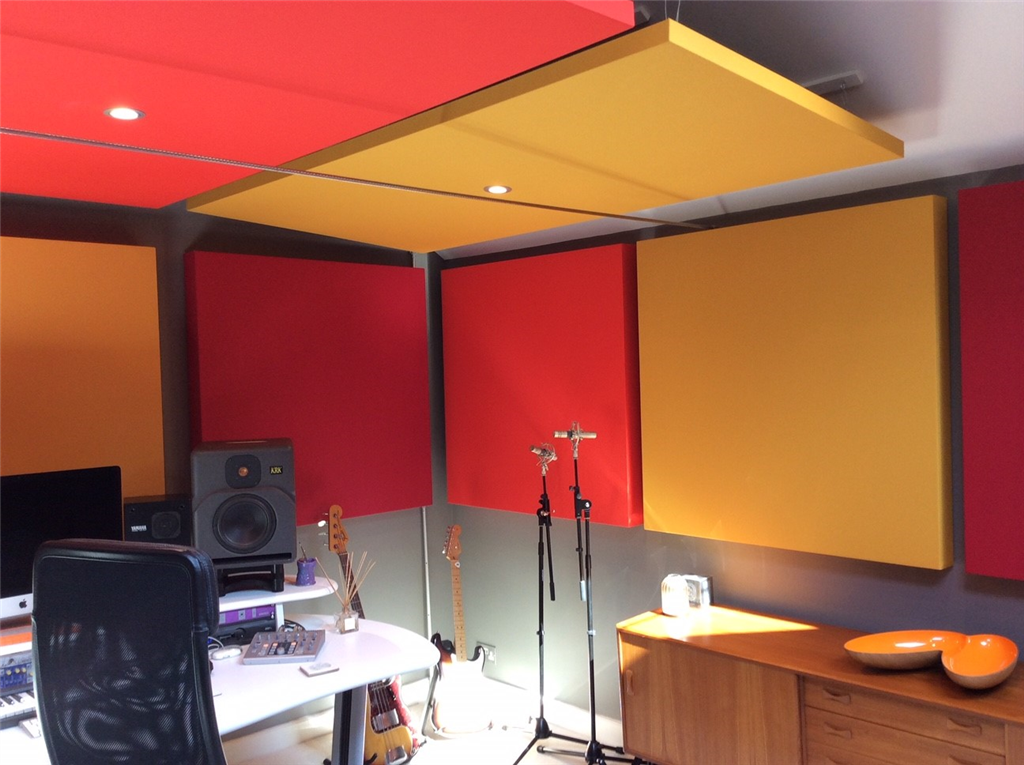

ProSonic acoustic panels: Range of colours. Size up to 3000 x 1200 mm, Class 0 fire rated. NRC up to 1.00. Class A, B or C.

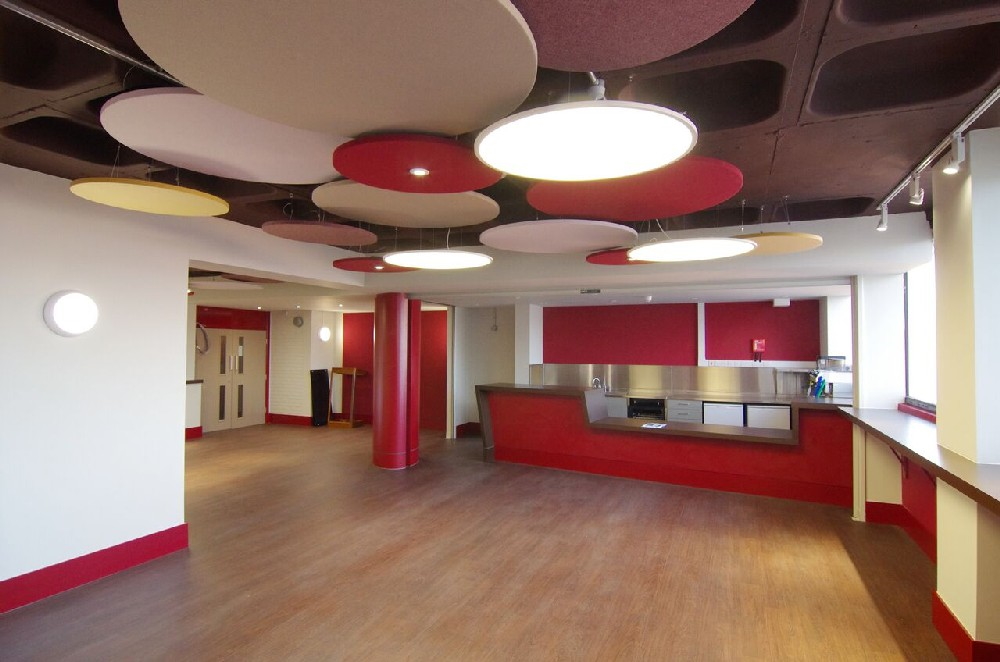

ProSonic Nimbus Clouds: NRC 1.00, Class O, suspended acoustic panels (also in concave or convex orientations).
ProSonic high impact sports panels: Recycled.
Acoustic curtains/drapes: high performance, generally industrial and environmental uses.
ProSonic external acoustic panels: Recycled rubber. Reduces reverberation in tunnels, railway sidings, construction sites.

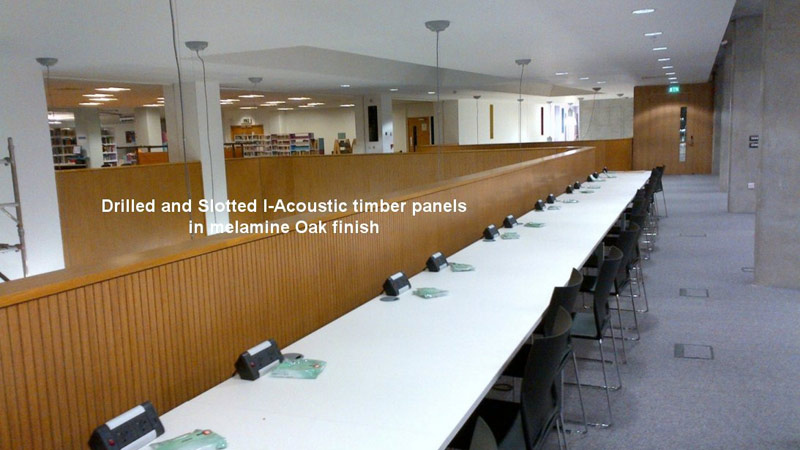

I-Acoustic perforated timber acoustic panels: For theatres, auditoriums, hotels, conference rooms, restaurants and lobby areas.
Stage shells: to enhance natural sound (portable).
Tecsound metal deck roofing systems: High performance noise reduction for metal deck roofing.
Acoustic dividers: Rail system, for reducing reverberation, Recycled.

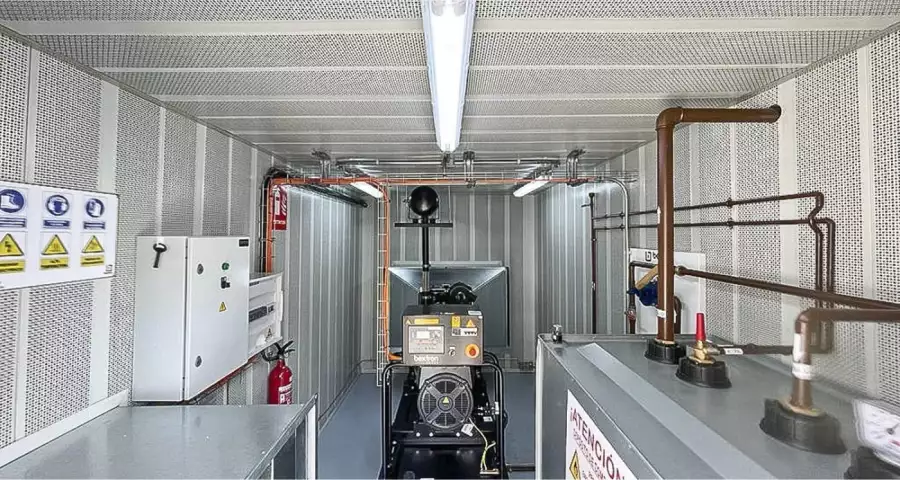

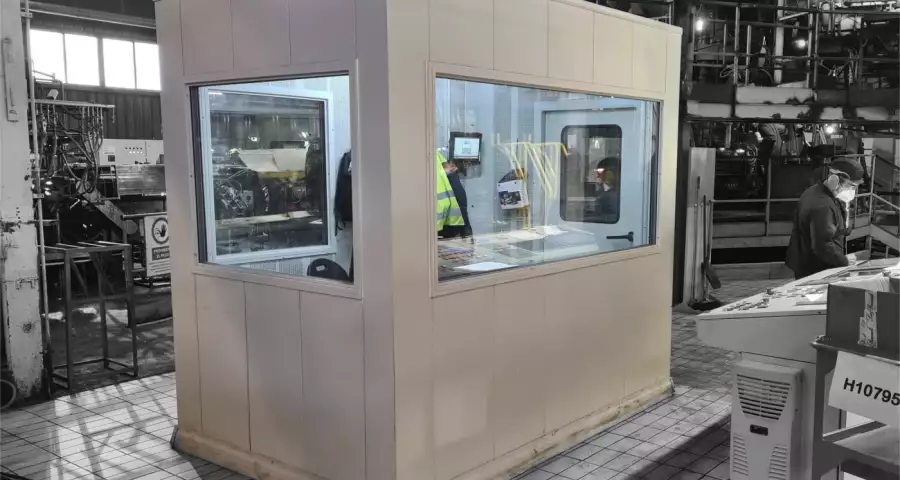

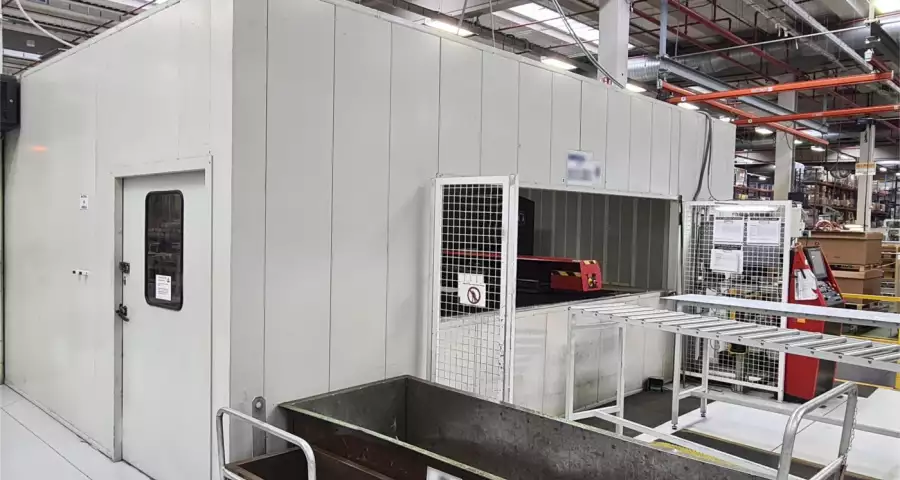

Steel acoustic enclosures: Modular panels to create acoustics enclosures inside factory spaces.

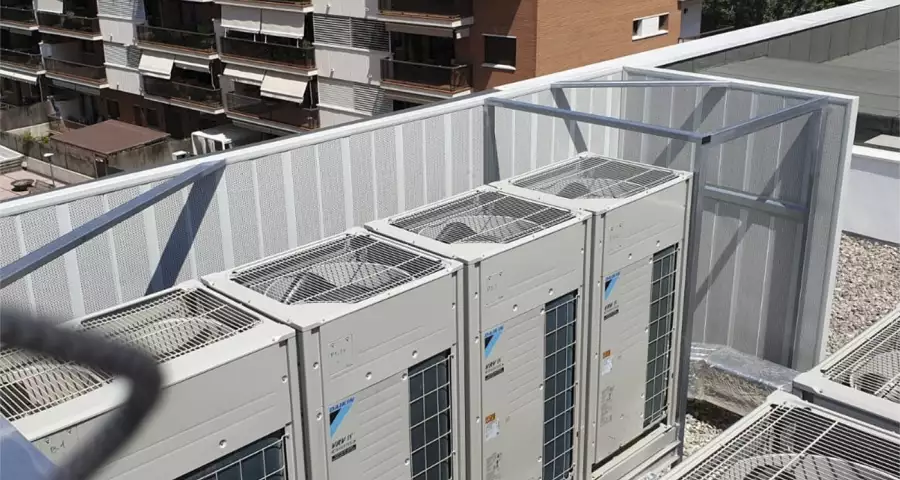

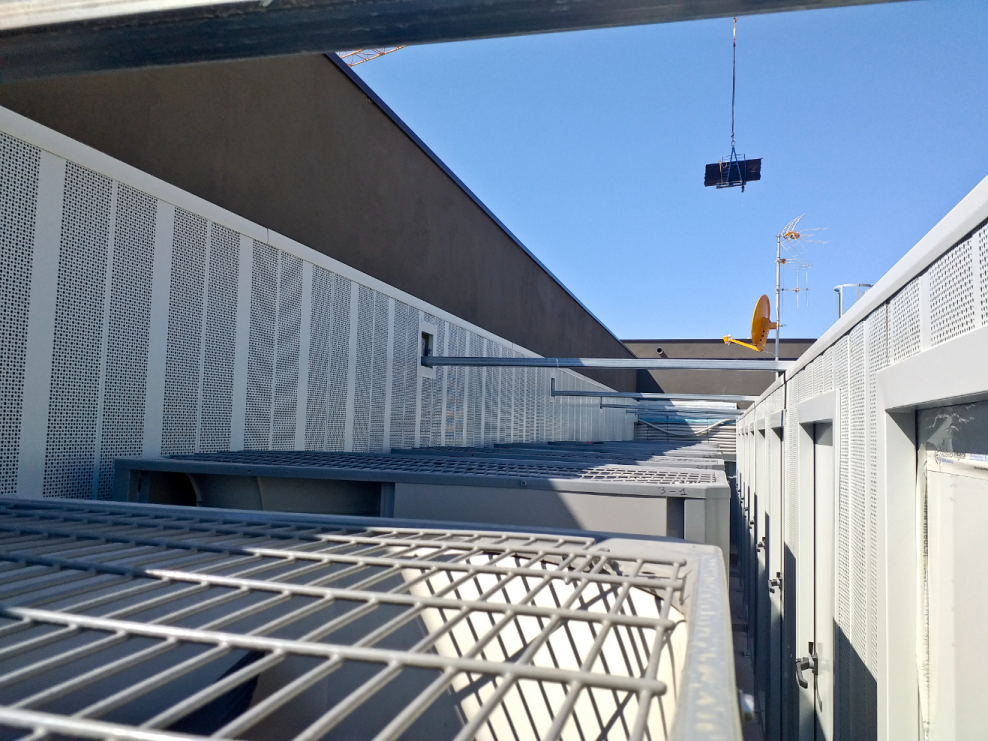

Environmental acoustic barriers: Timber and metal.
Ceiling to floor suspended acoustic screens: For large open internal spaces.
Acoustic foams: Class 0 fire rated.
Anti-vibration isolation mountings: Wide range for virtually any application.
Class O PVC nitrile sealing tapes: For sealing expansion gaps in floors and ceilings.

Services
Custom Audio Designs provides a full technical service to aid design, specification and material procurement, including:

• consultancy service
• acoustic detailing
• acoustic testing/analysis
• Noise at Work assessments
• BB93 assessments
• retail acoustics
• IOA qualified technical support
• CPD presentations
• Acoustic camera service

Technical data sheets, COSHH and Health and Safety data sheets for all products are available upon request. Some product ranges are now available as National Building Specifications (NBS).
